WFilter deployment with D-Link DES-1226G switch

4.1

Author:

IMFirewall Software

HomePage:

http://www.wfiltericf.com

This document demonstrators how to deploy WFilter with a dlink DES-1226G switch. The network topology diagram:

Figure 1

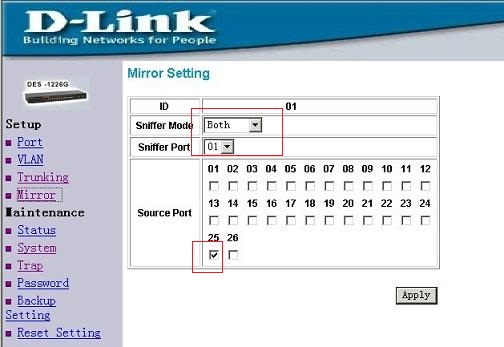

DES-1226G is a manageable switch with port mirroring feature. Mirroring settings screenshot:

Figure 2

In this example, port 25(connected to the router) is configured as the "source port", port 1(connected to WFilter) is configured as the "sniffer port".

By now, you are able to monitor all clients internet activity in local network.
